| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | International standard packaging for shipping |
| Delivery Period: | 30 days |
| Payment Method: | L/C, T/T, Western Union |
| Supply Capacity: | 300 sets per year |
| Model | WZ-600 |
| Center distance | 150/192 mm |
| Package Length | 120~600 mm |
| Package Width | 70-200 mm |
| Package Height | 20-80mm /70-110 mm |
| Packing Speed | 25~100 bags/min(Depending on packaging specifications) |
| Maximum packaging film width | 200-600 mm |
| Packaging film type | OPP,PVC,OPP/CPP,PT/PE,KOP/CPP ETC |
| Type of power supply | 220V 50HZ |
| General power | 4.8 Kw |
| Weight | 550 Kg |
| Dimension | 4260×1130×1400 mm(Including tailstock) |

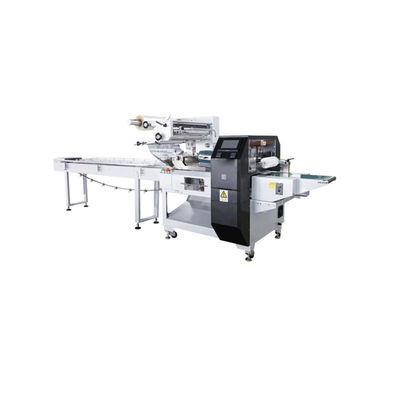

It is suitable for packaging of quick-frozen foods with trays such as dumplings, wontons, steamed buns, and glutinous rice balls, or various solid regular objects such as bread, cakes, and cartons.
1.The whole machine is controlled by four servos:
2.The machine packaging range is large, suitable for packaging all kinds of large specifications.large size products.
3.Seven-inch touch screen display. easy operation and clear working status.
4.Can store a variety of product parameters and formulations, do not need to set repeatedly, download can be used.
5.Automatically adjust the bag length without manual setting.
6.The machine has higher precision. sealing and cutting position is accurate.
7.Stop position, coding position can be set in the touch screen, click, convenient and fast.
8.Simple mechanical structure, convenient debugging and intuitive, low after-sales maintenance
