| MOQ: | 1 set |
| Price: | Negotiable |
| Delivery Period: | 30 days |
| Payment Method: | L/C, T/T, Western Union |
| Supply Capacity: | 300 sets per year |

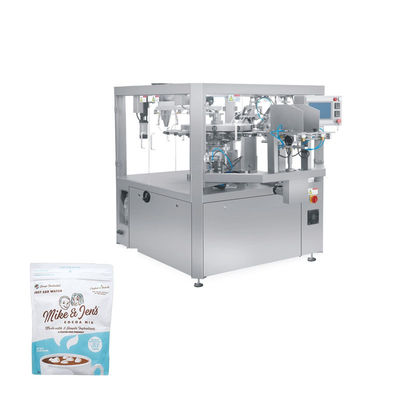

| Model | MG-300 |
| Packaging speed | 60bags/min |
| Packaging specifications | 90-120mm |
| Packaging form | Premade bags(flatbags,self-supporting bags,zipper bags,handbags,m-bags,etc.) |
| Air source | 5-7Kg/m³,500L/min |
| Packaging | Single layer PE, PE composite film, paper film and other composite films |
| Weight of complete machine | ≈720Kg |
| Type of power supply | 380V |
| Total power | 7Kw |
Overall dimension
| 2100mmX1500mmX1520mm |
① Block items: candy, chocolate, rock candy, biscuits, pastries, peanuts, green beans, pistachios, nuts, cooked food, pickles, puffed foods, daily necessities, etc.;
②Granules: MSG, chicken essence, sugar, melon seeds, nuts, capsules, granular medicines, seeds, feed, pesticides, fertilizers, chemical raw materials, etc.;
③Powders: condiments, monosodium glutamate, salt, glucose, refined sugar, milk powder, washing powder, pesticides, fertilizers, chemical raw materials, etc.;
④Liquids: rice wine, soy sauce, rice vinegar, juice, beverages, detergents, etc.;
⑤ Sauces: tomato sauce, peanut butter, jam, chili sauce, bean paste, etc.;
⑥Other materials that can be bagged.
1. Bag loading→ 2. Coding →3. Bag opening→ 4. Unloading →5. Dust sweeping →. Heat sealing→ 7. Heat sealing 8. Shaping
1. A wide range of packaging, suitable for materials of various shapes, states, and properties (rice, whole grains, roasted nuts, spicy puffed nuts, chestnuts, liquids, etc.)
2. Easy to operate: PLC touch screen control, human-machine interface operating system: intuitive and convenient to operate
3. Convenient adjustment: the machine clamps are adjusted synchronously, and the parameters of the equipment can be saved when producing different products, and can be retrieved from the database when changing varieties.
4. High degree of automation: All actions are completed by end-face cams. Compared with groove cam processing technology, the processing technology is simple and low-cost, and the speed can reach 60 packs/min during high-speed operation.
5. The complete prevention system can intelligently detect whether the bag is opened and whether it is complete. If the material is not suitable, no material will be added and no heat sealing will be performed. Bags and materials will not be wasted. Empty bags can be recycled to the first station for refilling. Avoid bags causing waste and save costs.
6. The equipment complies with the hygienic standards of food processing machinery. The parts that contact the equipment and materials are made of 304 stainless steel or other materials that meet food hygiene requirements to ensure food hygiene and safety and comply with GMP standards.
7. Use oil-free vacuum pumps to avoid polluting the production environment
8. Adopt waterproof design, easy to clean, reduce the difficulty of cleaning, and extend the service life of the machine.
9. Try out premade bags, which have high sealing quality and improve the quality of finished products.
Screw scales, linear scales, measuring cups, screw feeders, weight sorting scales, metal detectors, vacuum cleaners
