Aluminum Nespresso Capsule Making Machine - Empty Aluminium Coffee Capsule Forming Machine

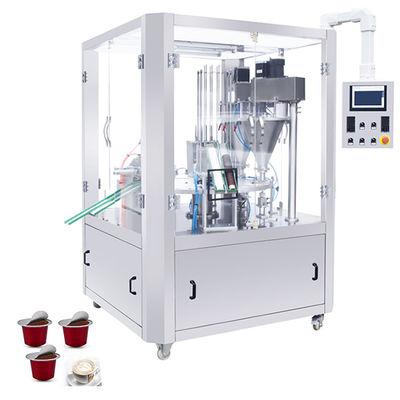

                                                             Automatic Coffee Capsule Filling Sealing Machine

Machine Application overview:

This is a high speed disc coffee capsule filling sealer. It is the first high-speed disc coffee filling sealing packaging machine in China. The maximum speed is 50 times per minute. At the same time, cooperate with the advanced electrical appliances, appearance and safety design, to achieve the domestic first-class level.

The machine design shall be designed in accordance with the relevant national food and drug and machinery industry standards and your specification requirements, and based on the principles of safety first, stable performance, intelligent, simple and convenient maintenance, energy saving and noise reduction.

Hole production line includes :

Vertical Capsules Loading Station

1. Manually placing the stackable capsules on pile onto the inclined rack, and pushing them into the capsules magazine.

  2. The Capsules will be denester and dropped into the capsule module plates one by one automatically .

Cup Feeding

1.Automatic load cups.

2.loading device can be changed to other size to satisfied your different coffee capsules.

Servo Auger Filling Station

1. With Nitrogen flushing function inside the 10L visual stuff hopper;* With world famous Schneider brand servo motor driving auger filling system .

2. With mixing system to flat the powder level for a better filling accuracy .

3. With tuning fork type level sensor to control the stuff feeding automatically .

4. With flexible movable hopper, the hopper can be pulled out for easy clean the hopper.

Coffee filling with nitrogen flushing

1.Automatically vacuum suck and convey coffee powder.

2.Servo motor control auger filling.

3.with filling nitrogen system ,nitrogen flush process from empty capsules to heat seal station.

Capsule sealing system

1.Automatic suck and place lidss.

2.Omoron brand automatically heat seal,line seal and flat seal.

3.Sealing material is copper ,Heat evenly ,sealing effect is more good .

4 .Easy to change mold size.

Coffee capsule output

1.Automatically output finished product.

2.Automatically reject unqualified product as optional function .

3.Automatically count capsule quantity on conveyor belt,sensor detect empty cups loading position ,no cups and alarm .

Drawings:

Sample:
