Electric Doypack packaging machine Customized granule powder liquid packaging solution

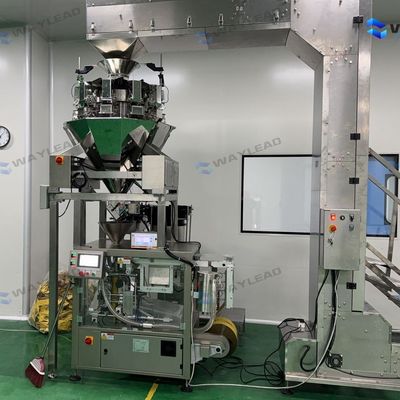

Doypack premade pouch packing machine

The control system of a doypack packaging machine operates based on the following principles:

I. Core Control Architecture

PLC Main Control System:

Utilizes a Siemens/Mitsubishi PLC as the primary controller to coordinate bag taking, opening, filling, sealing, and other actions through preset programs.
Supports multi-axis linkage control for precise movements, such as servo motor-driven heat sealing plate accuracy up to ±0.1mm.
Servo Drive Module:

Enables accurate positioning of the heat sealing plate using a worm gear mechanism to prevent deviations seen in traditional cylinder single-sided feeding.
Synchronizes the bag feeding mechanism and metering device to ensure timing alignment of material filling and bag delivery.
II. Sensor Coordination Mechanism

Real-time Monitoring System:

Photoelectric sensors detect bag position status, triggering warning shutdown in case of missing bags to minimize idle loss.
Weight sensors monitor filling volume, automatically rejecting substandard products during abnormalities.
Closed-loop Feedback Adjustment:

Temperature sensors dynamically adjust heat sealing knife parameters (150-200℃), issuing alarms for poor sealing.
Position sensors ensure the bag opening mechanism's airflow injection angle matches the bag opening.
III. Human-Machine Interaction Interface

Touch Screen:

Displays operational parameters (e.g., speed, temperature, output) and provides real-time fault code prompts.
Programmable Interface:

Enables quick switching of packaging specifications, with production parameter adjustment time ≤3 minutes.
IV. Safety Protection Function

Emergency Stop Button:

Directly cuts off power supply, featuring mechanical and electrical dual circuit protection.
Automatic Interlocking Shutdown Function:

Halts the process immediately upon detecting bag jams or heat sealing abnormalities to ensure operational safety.

Product Application:

Doypack premade pouch packing machine has a wide range of applications in various industries and scenarios, including but not limited to the following fields:

• Food Sector: Utilized for packaging nuts, dried fruits, puffed snacks, baked goods, instant meals, condiments, drink powders, and other food items.
• Beverage Sector: Employed for packaging juice, milk, beverage powders, tea, and other beverages.
• Cosmetics and Personal Care Sector: Utilized for packaging shampoo, body wash, skincare items, cosmetics, and beauty products.
• Pharmaceutical Sector: Used for packaging medicines, dietary supplements, and health products.
• Household Products Sector: Employed for packaging laundry detergent, dish soap, and cleaning solutions.
• Agriculture and Horticulture Sector: Utilized for packaging fertilizers, seeds, pesticides, and agricultural products.
• Pet Care Industry: Used for packaging pet food and treats.
• Industrial Packaging: Employed for packaging chemicals, lubricants, coatings, and various industrial products.

The flexibility and applicability of doypack premade pouch packing machine make it suitable for a variety of industries and product types, providing enterprises with efficient and accurate packaging solutions.​

Product Advantages

The doypack premade pouch packing machine has many advantages that make it the preferred packaging solution in many industries:

• Versatility: The machinery can adapt to various bag types (three-dimensional bags, flat bags, straw bags, etc.) and a broad spectrum of products (food, cosmetics, pharmaceuticals, etc.).
• Efficiency: Automated procedures and high-speed packaging capabilities bolster production efficiency, leading to reduced time and labor expenses.
• Accuracy: The precise measuring of the filling system guarantees the exact product quantity in each bag.
• Flexibility: Customizable parameters and setups enable tailoring to diverse packaging requirements, encompassing various bag sizes and materials.
• Hygiene: Compliant with hygiene standards, the design suits the food and pharmaceutical sectors, ensuring product hygiene and safety.
• Space-saving: In comparison to conventional packaging equipment, Doypack machines typically occupy less space, optimizing production areas.
• Ease of operation: Featuring an intuitive interface and automated control system, these machines are user-friendly, facilitating easy operation and maintenance.
• Quality assurance: Dependable sealing technology and detection systems uphold the quality and integrity of the packaged items.

Doypack premade pouch packing machine is an automated equipment used to pack various products. The following is a brief description of the working principle of doypack premade pouch packing machine:

• Product Feeding and Metering: Initially, the packaging machine's feeding system processes the products, which can vary from powder to granules to liquids. Typically, a metering system is integrated to ensure precise product quantities in each bag.
• Bag Conveying and Formation: Premade bags are extracted from the roll material and, following a series of conveying mechanisms, are opened and directed to the filling zone.
• Product Filling: The product is dispensed into the bag based on predetermined parameters. For liquid products, a pump system or similar liquid filling equipment is utilized to guarantee accurate filling.
• Sealing: Post-filling, the bag is transported to the sealing section. Depending on the product and specifications, heat sealing, cold sealing, or other sealing methods are employed to seal the bag mouth, ensuring product freshness and a secure seal.
• Printing and Inspection: Subsequent to sealing, the bag may undergo a printing process to add product details or brand logos. Some packaging machines also feature detection systems to verify sealing quality and product integrity.
• Discharge and Stacking: Ultimately, the completed bags are discharged in the designated area, where they can be stacked or processed further using conveyor belts or alternative methods.

This is a basic workflow, and the specific operations and functions vary depending on different doypack premade pouch packing machine models and production needs.

Our packaging machine range includes:

VFFS machine VS Vertical form fill Seal machine:

• Granule VFFS Packing Machine.
• Powder VFFS Packing Machine.
• Liquid VFFS Packing Machine.

Flow wrapping machine VS pillow packing machine:

• Up Paper Flow Packing Machine.
• Down Paper Flow Packing Machine.
• Four Side Sealing Flow.
• cookie/cake/popsicle Packing Machine.
• Heat Shrink Packaging Machine.

pouch packing machine VS doypack packaging machine:

• Granule Doypack Packing Machine.
• Powder Doypack Packing Machine.
• Liquid Doypack Packing Machine.
• Rotary Premade Pouch Packing Machine.
• Horizontal/Liner Premade Pouch Packing Machine.

Automatic packaging line solution

• weight inspection machine
• metal inspection machine
• robot carton packing system
• carton sealing machine
• coding machine
• robot palletizing system

Our packaging machines can be used to package the following foods:

nut,driedfruits,bakerycandy.sugar,food/dumplingproducts,cookie,cake,bread.frozensnack,chocolate,chips,marshmallow,confectionery.popsicle,candy bars,ice cream bars,brownies,muffins, nooddles,etc.

Q1: Are you a trading company or a manufacturer?

A1: We are a manufacturer, we provide quality products at factory price, welcome to visit us!

Q2: If we buy your machine, what quality guarantee or warranty do you provide?

A2: We provide you with high-quality machines with a 3-year warranty and provide lifetime technical support.

Q3: When can I get the machine after payment?

A3: The delivery time is subject to the exact machine you confirmed

Q4: How do you provide technical support?

A4:1. Provide technical support via phone, email or MSN/Skype 24/7

2.Provide you with instructions/videos for machine installation, adjustment, setting, maintenance.

3. Engineers are available to provide services for overseas machinery

Q5: How does your after-sales service work?

A5: Ordinary machines will be properly adjusted before shipment. You can use the machine immediately. You can also get free training advice on our machines in our factory. You can also get free advice and consultation, technical support and service, and lifetime technical support via email/fax/phone.

Q6: How about spare parts?

A6: After we handle everything, we will provide you with a spare parts list for your reference

Q7: If we have very special requirements for the production line, can you help me with the design?

A7: Customized design is available with experienced mechanical engineers

Q8: If we have samples of new products, can you help analyze and design the machine?

A8: Yes, our technical department can help analyze, design and test the new products you provide.

Q9: Can you tell me how to start an order?

A9: After paying a 30% deposit to our company after signing the contact information (Pl). We arrange production. Test and inspect the machine before shipment. Checked by customers or third-party agencies through online or on-site testing. Send the balance before shipment

Q10: Can you send me the product catalog and price list?

A10: An electronic catalog showing product styles is available for your reference. Since the prices of specific products vary, please consult us for your detailed products

Q11: Can l visit your factory?

A11: Sure, Our factory address: Room 304,Wanchuangfang, No.155 Anzhi Road, Jiading District,Shanghai,China
