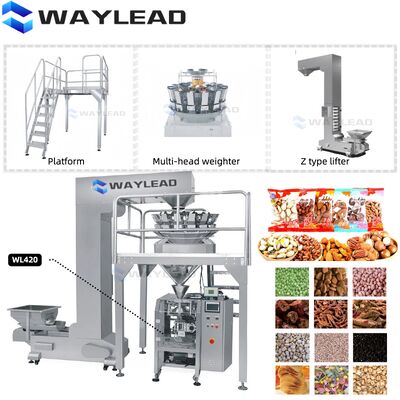

Food VFFS Machine Vertical Packaging Machine For Food Processing
| MOQ: | 1 |
| Price: | Negotiations |
| Standard Packaging: | International standard packaging for shipping |
| Delivery Period: | 30 days |
| Payment Method: | L/C,T/T,Western Union |
| Supply Capacity: | 300 sets per year |
Detail Information
Place of Origin
Shanghai
Brand Name
Waylead
Certification
/
Model Number
WL-420
Document
Packing Speed:
15-70bags/min
Model:
WL-420
Bag Size:
Length:50-190mm Width:50-150mm
Film Material:
PP,CPP,PVC,PS,EVA,PET,PVDC/PVC,OPP/CPP,and Etc
Product Type:
Packing Machine
Application:
Food Beverage Commodity Chemical Machinery & Hardware
Power Type:
Electric
Power Consumption:
4KW
Material:
Stianless Steel
Packaging Range:
Granules Powder Liquid
Highlight:
VFFS Packaging Machine
,Food VFFS Machine
Product Description
Industrial Vertical Form Fill Seal Machine
Our high-performance VFFS Machine adopts a single-layer film vertical form fill seal design, serving as a premium industrial packaging solution tailored for PE film applications. As a reliable and efficient big vertical packing machine, it integrates automated bag forming, precise product dosing, high-volume filling and tight sealing into a continuous vertical workflow, enabling large-scale production. This advanced VFFS Machine minimizes manual intervention and operational bottlenecks, significantly boosting productivity in food, cosmetic and pharmaceutical industries. Engineered for single-layer PE film, it delivers excellent cost efficiency and packaging flexibility, with a sturdy construction ensuring stable and uninterrupted operation even under heavy production loads. By optimizing the entire packaging process, this industrial big vertical packing machine improves operational efficiency, reduces production costs and maintains consistent packaging quality for your products.
Versatile Applications Across Industries
Our VFFS (Vertical Form Fill Seal) systems are engineered for automated packaging of granular materials, blocks, sheets, powders, liquids, sauces, and semi-viscous products across multiple industries:
- Food & Beverage: Snacks, frozen goods, confectionery, seasonings
- Agricultural: Grains, seeds, fertilizers
- Industrial: Hardware components, chemical pellets
- Pharmaceuticals: Tablets, medical devices, nutraceuticals
Technical Specifications
| Model | WL-320 | WL-420 | WL-520 | WL-620 | WL-720 |
|---|---|---|---|---|---|
| Bag Size | Length: 50-190mm Width: 50-150mm |
Length: 80-300mm Width: 60-200mm |
Length: 120-350mm Width: 100-265mm |
Length: 80-400mm Width: 100-280mm |
Length: 100-510mm Width: 240-420mm |
| Packing Speed | 20-100 bags/min | 15-70 bags/min | 15-70 bags/min | 15-70 bags/min | 3-30 bags/min |
| Total Power | 3.9Kw | 4Kw | 5Kw | 5.2Kw | 6Kw |
| Air Consumption | 6kg/cm²; 300L/min | 6kg/cm²; 300L/min | 6kg/cm²; 300L/min | 6kg/cm²; 300L/min | 6kg/cm²; 630L/min |
| Machine Weight | 220kg | 580kg | 600kg | 900kg | 1100kg |
| Machine Dimensions | 1500×1170×1120 mm | 1765×1100×1467 mm | 1795×1139×1568 mm | 2125×1300×1690 mm | 2000×1740×2350 mm |
Film Material: PP, CPP, PVC, PS, EVA, PET, PVDC/PVC, OPP/CPP, and more
Power Supply: 220V 50Hz (single-phase); 380V 50Hz (three-phase)
Transform your packaging efficiency with our Automatic Vertical Form-Fill-Seal (VFFS) Machine—the space-saving solution designed for granules, liquids, and powders! Its advanced vertical structure cuts down on factory footprint without compromising performance, boasting an impressive throughput of 30-60 bags per minute to meet high-volume production demands.
Advanced Features
- Machine equipped with measure parts to automatically complete packaging process including measuring, feeding, bag filling, date printing, air aeration (exhaust), bag conveying, and automatic bag counting
- PLC control system, pneumatic control system and oversize touch screen for maximum control precision, reliability and intelligence
- Touch screen stores packaging process parameters for multiple products, eliminating resetting when changing products
- Intelligent temperature controller ensures highly accurate temperature control for beautiful and smooth sealing
- Available in full stainless steel or carbon steel with plastic-sprayed machine structure
- Error display system for quick troubleshooting
- Safety protection features to meet enterprise safety management requirements
- Capable of producing back sealing bags, 3-side sealing or 4-side sealing bags, and various sealing solution bags according to customer requirements
Complete Packaging Solutions
VFFS Machines (Vertical Form Fill Seal)
- Granule VFFS Packing Machine
- Powder VFFS Packing Machine
- Liquid VFFS Packing Machine
Flow Wrapping Machines (Pillow Packing)
- Up Paper Flow Packing Machine
- Down Paper Flow Packing Machine
- Four Side Sealing Flow
- Cookie/Cake/Popsicle Packing Machine
- Heat Shrink Packaging Machine
Pouch Packing Machines (Doypack)
- Granule Doypack Packing Machine
- Powder Doypack Packing Machine
- Liquid Doypack Packing Machine
- Rotary Premade Pouch Packing Machine
- Horizontal/Liner Premade Pouch Packing Machine
Complete Packaging Line Solutions
- Automatic Packaging Line Solution
- Weight Inspection Machine
- Metal Inspection Machine
- Robot Carton Packing System
- Carton Sealing Machine
- Coding Machine
- Robot Palletizing System
Frequently Asked Questions
Q1: Are you a trading company or a manufacturer?
A1: We are a manufacturer, we provide quality products at factory price, welcome to visit us!
Q2: If we buy your machine, what quality guarantee or warranty do you provide?
A2: We provide you with high-quality machines with a 3-year warranty and provide lifetime technical support.
Q3: When can I get the machine after payment?
A3: The delivery time is subject to the exact machine you confirmed.
Q4: How do you provide technical support?
A4:
- Provide technical support via phone, email or MSN/Skype 24/7
- Provide instructions/videos for machine installation, adjustment, setting, maintenance
- Engineers are available to provide services for overseas machinery
Q5: How does your after-sales service work?
A5: Machines are properly adjusted before shipment for immediate use. We offer free training, technical support via email/fax/phone, and lifetime technical support.
Q6: How about spare parts?
A6: We provide a comprehensive spare parts list for your reference after order completion.
Q7: If we have very special requirements for the production line, can you help me with the design?
A7: Customized design is available with experienced mechanical engineers.
Q8: If we have samples of new products, can you help analyze and design the machine?
A8: Yes, our technical department can help analyze, design and test the new products you provide.
Q9: Can you tell me how to start an order?
A9: After paying a 30% deposit following contract signing, we arrange production, testing, and inspection. Customers or third-party agencies can verify through online or on-site testing before final payment.
Q10: Can you send me the product catalog and price list?
A10: Electronic catalogs showing product styles are available. Please consult us for specific product pricing as it varies by configuration.
Q11: Can I visit your factory?
A11: Sure, our factory address: Room 304, Wanchuangfang, No.155 Anzhi Road, Jiading District, Shanghai, China.
