High Speed Stand-up Bag Packing Line Doypack Packing Machine
| MOQ: | 1 |
| Price: | Negotiations |
| Standard Packaging: | International standard packaging for shipping |
| Delivery Period: | 30 days |
| Payment Method: | L/C,T/T,Western Union |
| Supply Capacity: | 300 sets per year |
Detail Information
Place of Origin
Shanghai
Brand Name
Waylead
Certification
/
Model Number
WG-250
Document
Packing Speed:
≦70 Bags/min
Bag Size:
Length:≦400mm Width:130-260mm
Film Material:
Flat Bags, Stand-up Pouches, Zipper Bags, Composite Film Pouches, And Other Types.
Power Supply:
380V
Air Consumption:
5-7kg/cm2; 0.4m3/min
Power Type:
Electric
Power Consumption:
8 KW
Material:
Stianless Steel
Packaging Range:
Granules Powder Liquid
Highlight:
Doypack Packing Line
,Stand-up Bag Doypack Packing Line
Product Description

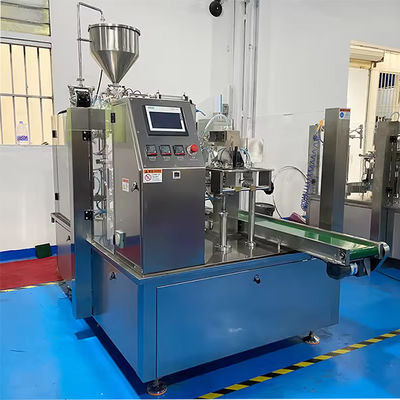

High Speed Stand-up Bag Packing Line Doypack packing machine
Designed for snack processing facilities, our Stand Up Pouch Packaging Machine (Shaped Doypack Packaging Machine) is a high-performance automatic packaging system tailored for chocolate, snacks, and diverse food products. It supports both standard stand up pouches and custom-shaped doypack formats, making it a versatile packaging solution.This equipment delivers a fully automated workflow from automatic bag feeding, coding, and precise bag opening to accurate filling, heat sealing, and finished product output. Boasting an adjustable speed of up to 60 bags per minute and a filling accuracy of ≤±1%, it guarantees efficient and consistent packaging results.Equipped with PLC touch screen control and a full servo drive system, it includes automatic fault alarm and no-bag no-filling functions to minimize material waste and stabilize production. Made of food-grade stainless steel, it complies with international food hygiene standards, enabling snack and food manufacturers to boost productivity and reduce labor costs significantly.
Technical Specifications
| Specification | WG-210 | WG-250 | WG-300 |
|---|---|---|---|
| Bag Size | Length: 120-380mm Width: 90-210mm |
Length: ≤400mm Width: 130-260mm |
Length: ≤400mm Width: 160-300mm |
| Packing Speed | ≤70 bags/min | ≤70 bags/min | ≤65 bags/min |
| Work Stations | 8 | 8 | 8 |
| Packaging Formats | Flat bags, stand-up pouches, zipper bags, composite film pouches | Flat bags, stand-up pouches, zipper bags, composite film pouches | Flat bags, stand-up pouches, zipper bags, composite film pouches |
| Power Supply | 380V | 380V | 380V |
| Total Power | 8Kw | 8Kw | 8Kw |
| Air Consumption | 5-7kg/cm²; 0.4m³/min | 5-7kg/cm²; 0.4m³/min | 5-7kg/cm²; 0.4m³/min |
| Film Material | Single PE, PE composite film, paper film, various composite films | Single PE, PE composite film, paper film, various composite films | Single PE, PE composite film, paper film, various composite films |
| Machine Weight | 500kg | 580kg | 850kg |
| Machine Dimensions | 1700×1140×1470 mm | 1850×1250×1520 mm | 2100×1500×1520 mm |
Application Range
Block Items
Candy, chocolate, rock candy, biscuits, pastries, peanuts, green beans, pistachios, nuts, cooked food, pickles, puffed foods, daily necessities
Particles
MSG, chicken essence, sugar, melon seeds, nuts, capsules, granular medicines, seeds, feed, pesticides, fertilizers, chemical raw materials
Powders
Condiments, monosodium glutamate, salt, glucose, refined sugar, milk powder, washing powder, pesticides, fertilizers, chemical raw materials
Liquids
Rice wine, soy sauce, rice vinegar, juice, beverages, detergents
Sauces
Tomato sauce, peanut butter, jam, chili sauce, bean paste
Other Materials
Various other products suitable for bagging
Key Features & Advantages
GMP Compliance & CE Certification
Dual authoritative certifications meet stringent quality and safety requirements for pharmaceutical, food, and healthcare sectors. Streamlines global market access and eliminates international trade barriers while safeguarding product quality and consumer health.
Full Servo Control System
Ultra-reliable, high-speed precision operation with reduced equipment failure rates and unplanned downtime. Adapts flexibly to variable packaging rhythms and fulfills high-throughput production demands with pinpoint accuracy in material dosing, zipper doypack forming, and heat sealing.
Intelligent Empty Bag Tracking
Real-time detection of bag presence with instant interlock control to prevent empty bag sealing. Reduces packaging material waste, slashes manual sorting labor, lowers production costs, and enhances finished product purity.
8-Station Integrated Structure
Seamless connection of multiple packaging processes governed by programmable PLC system. Features 6 user-friendly flat touch screens and intuitive HMI interface for hassle-free parameter setting, real-time production monitoring, and quick troubleshooting. Lowers operator training threshold and guarantees long-term stable production.
Complete Packaging Solutions
Our comprehensive packaging range includes VFFS machines, flow wrapping machines, heat shrink packaging, pouch packing machines, and complete automated packaging lines with weight inspection, metal detection, carton packing, sealing, coding, and palletizing systems.
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a manufacturer, providing quality products at factory price. Welcome to visit us!
What quality guarantee or warranty do you provide?
We provide high-quality machines with a 3-year warranty and lifetime technical support.
When can I get the machine after payment?
Delivery time depends on the specific machine model ordered.
How do you provide technical support?
24/7 support via phone, email, or messaging platforms; installation guides and videos; overseas engineering services available.
How does your after-sales service work?
Machines are pre-adjusted before shipment with free training available. Lifetime technical support provided via multiple communication channels.
How about spare parts?
We provide a comprehensive spare parts list for reference.
Can you help with custom design requirements?
Customized design available with our experienced mechanical engineers.
Can you help analyze and design machines for new product samples?
Yes, our technical department can analyze, design, and test new products you provide.
How do I start an order?
30% deposit after signing contract, production arrangement, pre-shipment testing and inspection, balance payment before shipment.
Can you send product catalog and price list?
Electronic catalog available. Please consult us for specific product pricing.
Can I visit your factory?
Yes, welcome to visit our factory at Room 304, Wanchuangfang, No.155 Anzhi Road, Jiading District, Shanghai, China.
