Sanitary Pre-made Pouch Packer – MAP, Vacuum, Coder for Food & Pharma
| MOQ: | 1 |
| Price: | Negotiations |
| Standard Packaging: | International standard packaging for shipping |
| Delivery Period: | 30 days |
| Payment Method: | L/C,T/T,Western Union |
| Supply Capacity: | 300 sets per year |

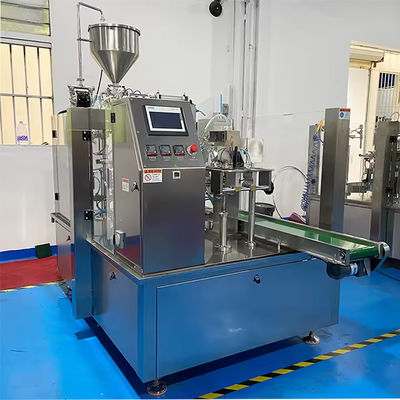

Engineered specifically for wet, high-hygiene, and food-contact environments. Our IP65-rated stand-up pouch packaging machine handles pre-made bags, zipper bags, and flat pouches with full washdown capability. The dual-servo drive eliminates cam-and-lever mechanisms, reducing lubrication points and contamination risks.
Preserve freshness with MAP and vacuum. For oxygen-sensitive products like coffee, nuts, dried meats, or ready meals, integrate gas flushing (modified atmosphere packaging) to replace oxygen with nitrogen. For wet or frozen products, add vacuum packaging to remove air and extend shelf life. Both options are available on the same platform.
Traceability is built in. A customizable coder (thermal transfer, inkjet, or hot stamp) prints batch codes, expiration dates, QR codes, or nutritional info directly onto each pouch. Coordinates with the dual-servo system for perfect registration.
Fast changeover meets sanitation. Smooth, open-frame design with sloped surfaces prevents product buildup. Quick bag change between formats takes under 5 minutes, and all contact parts are removable for cleaning. Optional stainless steel construction for aggressive environments.
Filling head options: volumetric cup for grains/sugar, piston pump for sauces/pastes (up to 8,000 cPs), auger for fine powders, or multi-head weigher for sticky snacks. Describe your product viscosity and hygiene requirements – we'll configure a custom pre-made pouch packing line that meets HACCP/GMP standards.
| Specification | WG-210 | WG-250 | WG-300 |
|---|---|---|---|
| Bag Size | Length: 120-380mm Width: 90-210mm |
Length: ≤400mm Width: 130-260mm |
Length: ≤400mm Width: 160-300mm |
| Packing Speed | ≤70 bags/min | ≤70 bags/min | ≤65 bags/min |
| Work Stations | 8 | 8 | 8 |
| Packaging Formats | Flat bags, stand-up pouches, zipper bags, composite film pouches | Flat bags, stand-up pouches, zipper bags, composite film pouches | Flat bags, stand-up pouches, zipper bags, composite film pouches |
| Power Supply | 380V | 380V | 380V |
| Total Power | 8Kw | 8Kw | 8Kw |
| Air Consumption | 5-7kg/cm²; 0.4m³/min | 5-7kg/cm²; 0.4m³/min | 5-7kg/cm²; 0.4m³/min |
| Film Material | Single PE, PE composite film, paper film, various composite films | Single PE, PE composite film, paper film, various composite films | Single PE, PE composite film, paper film, various composite films |
| Machine Weight | 500kg | 580kg | 850kg |
| Machine Dimensions | 1700×1140×1470 mm | 1850×1250×1520 mm | 2100×1500×1520 mm |
