304 Stainless Steel Auger Dosing Powder Packing Machine with ±1% Metering Accuracy and Dust Collection System
| MOQ: | 1 |
| Price: | Negotiations |
| Standard Packaging: | International standard packaging for shipping |
| Delivery Period: | 30 days |
| Payment Method: | L/C,T/T,Western Union |
| Supply Capacity: | 300 sets per year |
Detail Information
Place of Origin
Shanghai
Brand Name
Waylead
Certification
/
Model Number
WG-250
Document
Packing Speed:
≦70 Bags/min
Bag Size:
Length:≦400mm Width:130-260mm
Film Material:
Flat Bags, Stand-up Pouches, Zipper Bags, Composite Film Pouches, And Other Types.
Power Supply:
380V
Air Consumption:
5-7kg/cm2; 0.4m3/min
Power Type:
Electric
Power Consumption:
8 KW
Material:
Stianless Steel
Packaging Range:
Granules Powder Liquid
Highlight:
automatic premade zipper bag packing machine
,auger dosing powder packaging line
,premade pouch packing machine with warranty
Product Description

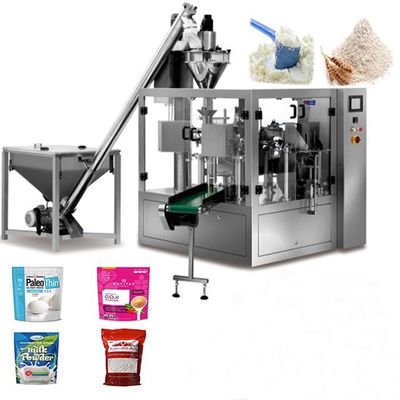

This auger dosing powder packing machine is specially developed for powder materials such as seasoning powder, milk powder, protein powder and flour. It adopts a 304 stainless steel full-enclosed metering auger structure, which effectively avoids powder flying and ensures no dead corners in the cleaning process. The metering accuracy can be controlled within ±1%, completely solving the problem of uneven powder metering in traditional packaging equipment. The equipment is equipped with a dust collection system at the bag feeding position, which can extract the floating powder generated during the packaging process, keep the workshop environment clean and prevent powder from adhering to the sealing position and affecting the sealing firmness. The servo motor drives the auger for quantitative rotation, and the parameters can be fine-tuned on the touch screen in real time. The whole line meets GMP production standards and is suitable for food and pharmaceutical grade high-standard production scenarios. We provide complete CE, ISO and other certification documents, and the after-sales team has professional engineers with more than 10 years of overseas service experience.
.
Technical Specifications
| Model | WG-210 | WG-250 | WG-300 |
|---|---|---|---|
| Bag Size | Length: 120-380mm Width: 90-210mm |
Length: ≤400mm Width: 130-260mm |
Length: ≤400mm Width: 160-300mm |
| Packing Speed | ≤70 bags/min | ≤70 bags/min | ≤65 bags/min |
| Work Stations | 8 | 8 | 8 |
| Packaging Formats | Flat bags, stand-up pouches, zipper bags, composite film pouches | Flat bags, stand-up pouches, zipper bags, composite film pouches | Flat bags, stand-up pouches, zipper bags, composite film pouches |
| Power Supply | 380V | 380V | 380V |
| Total Power | 8Kw | 8Kw | 8Kw |
| Air Consumption | 5-7kg/cm²; 0.4m³/min | 5-7kg/cm²; 0.4m³/min | 5-7kg/cm²; 0.4m³/min |
| Film Material | Single PE, PE composite film, paper film, various composite films | Single PE, PE composite film, paper film, various composite films | Single PE, PE composite film, paper film, various composite films |
| Machine Weight | 500kg | 580kg | 850kg |
| Machine Dimensions | 1700*1140*1470 mm | 1850*1250*1520 mm | 2100*1500*1520 mm |
Application Range
Block Items
Candy, chocolate, rock candy, biscuits, pastries, peanuts, green beans, pistachios, nuts, cooked food, pickles, puffed foods, daily necessitiesParticles
MSG, chicken essence, sugar, melon seeds, nuts, capsules, granular medicines, seeds, feed, pesticides, fertilizers, chemical raw materialsPowders
Condiments, monosodium glutamate, salt, glucose, refined sugar, milk powder, washing powder, pesticides, fertilizers, chemical raw materialsLiquids
Rice wine, soy sauce, rice vinegar, juice, beverages, detergentsSauces
Tomato sauce, peanut butter, jam, chili sauce, bean pasteOther Materials
Various other products suitable for bagging Advantage Features
- Designed in accordance with GMP standards and CE certified
- Full servo control system for reliable, fast, and precise operation
- Empty bag tracking and monitoring device prevents sealing without bag opening, saving packaging materials
- Eight-station structure with centralized control via programmable PLC and six flat touch screens for simple operation
Complete Packaging Machine Range
Shanghai Waylead Intelligent Technology Co.,Ltd. is specialized in turn-key solutions for packaging processing projects and fruit/vegetable processing lines. The company focuses on packaging equipment, robot applications, fruit and vegetable processing equipment, etc., and is committed to the fruit and vegetable processing industry, baking industry, snack food industry, freeze-drying industry, and powder industry. sauce industry, hardware chemical industry and other one-stop professional services.
Our comprehensive packaging solutions include VFFS machines, flow wrapping machines, heat shrink packaging, pouch packing machines, and complete automated packaging lines with weight inspection, metal detection, carton packing, sealing, coding, and palletizing systems.
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a manufacturer, providing quality products at factory price. Welcome to visit us!
What quality guarantee or warranty do you provide?
We provide high-quality machines with a 3-year warranty and lifetime technical support.
When can I get the machine after payment?
Delivery time depends on the specific machine model ordered.
How do you provide technical support?
24/7 support via phone, email, or messaging platforms; installation guides and videos; overseas engineering services available.
How does your after-sales service work?
Machines are pre-adjusted before shipment with free training available. Lifetime technical support provided via multiple communication channels.
How about spare parts?
We provide a comprehensive spare parts list for reference.
Can you help with custom design requirements?
Customized design available with our experienced mechanical engineers.
Can you help analyze and design machines for new product samples?
Yes, our technical department can analyze, design, and test new products you provide.
How do I start an order?
30% deposit after signing contract, production arrangement, pre-shipment testing and inspection, balance payment before shipment.
Can you send product catalog and price list?
Electronic catalog available. Please consult us for specific product pricing.
Can I visit your factory?
Yes, welcome to visit our factory at Room 304, Wanchuangfang, No.155 Anzhi Road, Jiading District, Shanghai, China.
