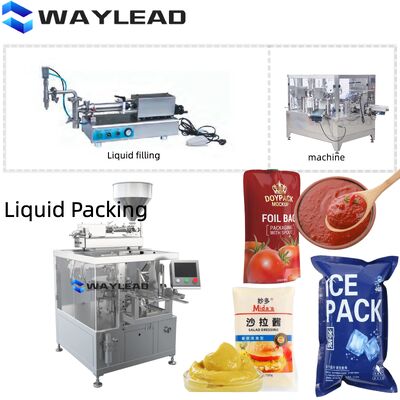

Automatic Packaging Line Premade Pouch System
| MOQ: | 1 |
| Price: | Negotiations |
| Standard Packaging: | International standard packaging for shipping |
| Delivery Period: | 30 days |
| Payment Method: | L/C,T/T,Western Union |
| Supply Capacity: | 300 sets per year |
automatic premade pouch packing machine
,premade pouch packaging system
,automatic pouch filling line
Our Automatic Packaging Line is a complete turnkey system for pre-made pouch packaging, integrating pouch feeding, filling, sealing, and downstream handling into a seamless production solution. This comprehensive system serves food manufacturers, contract packagers, and industrial processing plants requiring consistent, high-efficiency packaging with minimal manual intervention.
Integrated System Components:
The complete packaging line includes: automatic pouch magazine feeder, coding/printing unit, multi-station rotary filling and sealing machine, checkweigher, metal detector, and optional downstream equipment such as carton erectors, case packers, and palletizers. The modular design allows customized configuration based on specific production requirements — from a basic semi-automatic setup to a fully automated high-speed line producing up to 60 bags per minute.
Core Packaging Machinery:
The heart of the system is the rotary pre-made pouch filling and sealing machine, available with 5 to 8 stations depending on application complexity. This machine features: servo-driven indexing for accurate pouch positioning, PLC-controlled operation with intuitive touchscreen interface, automatic bag opening verification, multi-point sealing with temperature control, and CIP-compatible sanitary design. Bag size range covers 50-300mm width and 50-450mm length, accommodating most standard commercial pouch formats.
Flexible Filling Integration:
The system integrates seamlessly with various filling technologies: multihead weighers for granular products (snacks, nuts, grains), auger fillers for powders, piston pumps for liquids and sauces, and volumetric filling devices for pastes and viscous materials. Integration with robotic systems is also available for complex multi-component products or specialized handling requirements.
Quality Control Integration:
In-line quality assurance equipment ensures product consistency and safety. Checkweighers verify fill weight accuracy, metal detectors screen for contamination, and vision inspection systems check seal integrity and label placement. Automatic rejection mechanisms remove defective pouches from the line without stopping production, maintaining overall efficiency.
| Model | WG-210 | WG-250 | WG-300 |
|---|---|---|---|
| Bag Size | Length: 120-380mm Width: 90-210mm |
Length: ≤400mm Width: 130-260mm |
Length: ≤400mm Width: 160-300mm |
| Packing Speed | ≤70 bags/min | ≤70 bags/min | ≤65 bags/min |
| Work Stations | 8 | 8 | 8 |
| Packaging Formats | Flat bags, stand-up pouches, zipper bags, composite film pouches | Flat bags, stand-up pouches, zipper bags, composite film pouches | Flat bags, stand-up pouches, zipper bags, composite film pouches |
| Power Supply | 380V | 380V | 380V |
| Total Power | 8Kw | 8Kw | 8Kw |
| Air Consumption | 5-7kg/cm²; 0.4m³/min | 5-7kg/cm²; 0.4m³/min | 5-7kg/cm²; 0.4m³/min |
| Film Material | Single PE, PE composite film, paper film, various composite films | Single PE, PE composite film, paper film, various composite films | Single PE, PE composite film, paper film, various composite films |
| Machine Weight | 500kg | 580kg | 850kg |
| Machine Dimensions | 1700*1140*1470 mm | 1850*1250*1520 mm | 2100*1500*1520 mm |
- Designed in accordance with GMP standards and CE certified
- Full servo control system for reliable, fast, and precise operation
- Empty bag tracking and monitoring device prevents sealing without bag opening, saving packaging materials
- Eight-station structure with centralized control via programmable PLC and six flat touch screens for simple operation
