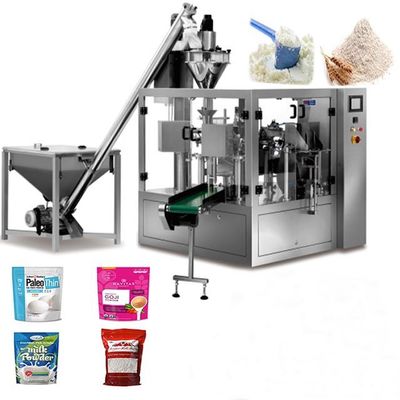

Premade Bag Packaging Machine Versatile Flat & Zipper Pouch Packing 120 Bags/Min
| MOQ: | 1 |
| Price: | Negotiations |
| Standard Packaging: | International standard packaging for shipping |
| Delivery Period: | 30 days |
| Payment Method: | L/C,T/T,Western Union |
| Supply Capacity: | 300 sets per year |
Premade pouch packing machine with zipper
,Versatile bag packaging machine 120 bags/min
,Flat pouch packing machine premade
Are you tired of changing the entire production setup every time you switch your retail packaging design?
The future of fast-moving consumer goods is flexibility. Our Premade Bag Packaging Machine is a versatile champion designed to handle flat bags, gusseted bags, Doypacks, and zipper bags all on the same platform . If you are a contract packager or a brand owner with multiple SKUs, this machine eliminates the need for multiple dedicated machines.
Here is why the Premade Bag solution is the smartest investment:
Ultimate Versatility: This machine works with any pre-formed bag type. Whether you are using 3-side seal bags or 4-side seal complex plastic bags, the automatic gripper width adjustment system allows you to change sizes (70mm to 160mm width) with a one-touch command . No need for tools or lengthy disassembly.
Dual-Lane High Speed (The Game Changer): For high-volume producers, our dual-channel parallel feeding system can double your output to 120 bags per minute . This is significantly faster than standard rotary systems, helping you meet bulk orders quickly and reducing your cost per bag.
Superior Bag-Opening Detection: Nothing is worse than filling a faulty bag. This machine features a vacuum opening system and a servo-driven bag protection mechanism. It gently pulls the bags open without damaging the material, ensuring smooth filling even for fragile aluminum foil bags .
| Model | WG-210 | WG-250 | WG-300 |
|---|---|---|---|
| Bag Size | Length: 120-380mm Width: 90-210mm |
Length: ≤400mm Width: 130-260mm |
Length: ≤400mm Width: 160-300mm |
| Packing Speed | ≤70 bags/min | ≤70 bags/min | ≤65 bags/min |
| Work Stations | 8 | 8 | 8 |
| Packaging Formats | Flat bags, stand-up pouches, zipper bags, composite film pouches | Flat bags, stand-up pouches, zipper bags, composite film pouches | Flat bags, stand-up pouches, zipper bags, composite film pouches |
| Power Supply | 380V | 380V | 380V |
| Total Power | 8Kw | 8Kw | 8Kw |
| Air Consumption | 5-7kg/cm²; 0.4m³/min | 5-7kg/cm²; 0.4m³/min | 5-7kg/cm²; 0.4m³/min |
| Film Material | Single PE, PE composite film, paper film, various composite films | Single PE, PE composite film, paper film, various composite films | Single PE, PE composite film, paper film, various composite films |
| Machine Weight | 500kg | 580kg | 850kg |
| Machine Dimensions | 1700*1140*1470 mm | 1850*1250*1520 mm | 2100*1500*1520 mm |
- Designed in accordance with GMP standards and CE certified
- Full servo control system for reliable, fast, and precise operation
- Empty bag tracking and monitoring device prevents sealing without bag opening, saving packaging materials
- Eight-station structure with centralized control via programmable PLC and six flat touch screens for simple operation
