Automatic zipper bag packing machine
,Liquid powder pouch filling plant
,Premade pouch packing machine with warranty

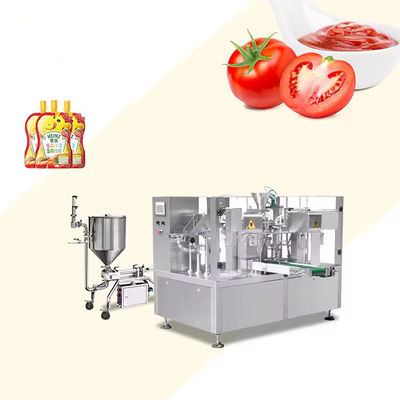

This automatic zipper pouch packing machine is specially designed for the safe packaging of liquid and powder materials. It optimizes a dedicated filling structure for materials such as sauces, beverages, seasoning powders, industrial powders, etc. No hanging wall dripping occurs when processing high-viscosity liquids, and the whole process is sealed without dust overflow when processing ultra-fine powders, completely avoiding material waste and workshop dust hazards, which is the ideal no drip liquid no dust powder packaging machine for safe production. The equipment is equipped with explosion-proof safety configuration, which can run stably and safely when processing flammable and explosive powder materials, complying with the production specifications of special industries such as daily chemicals and , making it a certified explosion proof powder packaging machine for chemical industrial use. The filling metering accuracy can be automatically fine-tuned according to the characteristics of materials, maintaining extremely high metering stability even after long-time continuous operation, avoiding batches of unqualified products with unqualified weight, meeting the requirement for consistent filling accuracy liquid powder packaging equipment for long production run. It is a reliable choice for liquid and powder production enterprises to realize automated packaging.
| Model | WG-210 | WG-250 | WG-300 |
|---|---|---|---|
| Bag Size | Length: 120-380mm Width: 90-210mm |
Length: ≤400mm Width: 130-260mm |
Length: ≤400mm Width: 160-300mm |
| Packing Speed | ≤70 bags/min | ≤70 bags/min | ≤65 bags/min |
| Work Stations | 8 | 8 | 8 |
| Packaging Formats | Flat bags, stand-up pouches, zipper bags, composite film pouches | Flat bags, stand-up pouches, zipper bags, composite film pouches | Flat bags, stand-up pouches, zipper bags, composite film pouches |
| Power Supply | 380V | 380V | 380V |
| Total Power | 8Kw | 8Kw | 8Kw |
| Air Consumption | 5-7kg/cm²; 0.4m³/min | 5-7kg/cm²; 0.4m³/min | 5-7kg/cm²; 0.4m³/min |
| Film Material | Single PE, PE composite film, paper film, various composite films | Single PE, PE composite film, paper film, various composite films | Single PE, PE composite film, paper film, various composite films |
| Machine Weight | 500kg | 580kg | 850kg |
| Machine Dimensions | 1700*1140*1470 mm | 1850*1250*1520 mm | 2100*1500*1520 mm |
- Designed in accordance with GMP standards and CE certified
- Full servo control system for reliable, fast, and precise operation
- Empty bag tracking and monitoring device prevents sealing without bag opening, saving packaging materials
- Eight-station structure with centralized control via programmable PLC and six flat touch screens for simple operation
