Automatic Packaging Machine Line for Pouch Carton Filling
| MOQ: | 1 |
| Price: | Negotiations |
| Standard Packaging: | wooden case |
| Delivery Period: | 40 |
| Payment Method: | L/C,T/T |
Detail Information
Place of Origin
Shanghai
Brand Name
Waylead
Certification
/
Model Number
/
Document
Cutting Type:
Multi-blades(pcs)
Warranty:
1 Year,12 Months
Quality Requirement:
250-350g/㎡Base On Carton Size
Capacity:
35-150 Bags/min.(For One Machine)
Feeding Speed:
30 M/min
Paper Bag Width:
180mm - 430mm
Controller System:
PLC
Function:
Dose, Form, Fill, Seal, Cut
Product Description
This automatic packaging machine line is configured for the complete process from pouch filling and sealing through to carton packing, providing a continuous automated flow for food and non-food products.
Pouch Filling to Carton Packing in One Flow
The line begins with a premade pouch or form-fill-seal machine that fills and seals product into flexible pouches. Sealed pouches discharge onto a collection conveyor equipped with a metal detector and checkweigher for quality verification. Accepted pouches are then collated into groups matching your carton configuration and transferred to the cartoning station. The cartoner erects, loads, and seals cartons automatically, with a coding unit applying date and batch information before discharge.
Handling Different Pouch and Carton Formats
Pouch size changeover is achieved through adjustable sealing jaws and pouch guides, typically within 30 to 60 minutes. Carton size adjustment uses motorized or manual handwheel positioning depending on model. The line accepts stand-up pouches, flat pouches, and three-side seal pouches. Carton formats include standard RSC, display cartons, and tray-with-lid styles.
Quality Control Integration
A checkweigher verifies each pouch against target weight, rejecting underfills and overfills. A metal detector screens for ferrous, non-ferrous, and stainless steel contaminants. Rejected pouches are diverted to a locked reject bin. The carton sealing station monitors seal temperature and pressure, with alarm and auto-stop on deviation.
Construction and Support

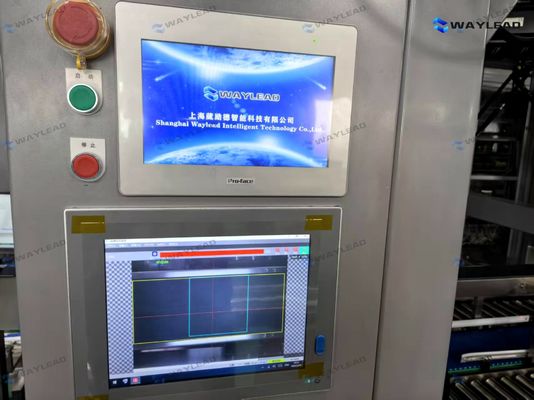

Product-contact surfaces use SUS304 stainless steel. Central PLC control with touchscreen HMI displays line status, reject counts, and production totals. Factory testing before shipment verifies synchronization. Delivery includes layout drawings, utility requirements, and operation manuals. Remote and on-site commissioning support available.
Key Technical Features
- Noise Level: ≤78 dB
- Feeding Speed: 30 M/min
- Capacity: 35-150 Bags/min (Per Machine)
- Controller System: PLC
- Power Supply: 1Ph. 220V 50Hz
- Paper Bag Width: 180mm-430mm
- Functions: Dose, Form, Fill, Seal, Cut
- Optional Rejector: Air Blower/Swing Arm/Pusher
Technical Specifications
| Product Name | Automatic Packaging Line |
| Dimensions | 2300×850×1450mm |
| Capacity | 35-150 Bags/min (Per Machine) |
| Controller System | PLC |
| Quality Requirement | 250-350g/㎡ (Based on Carton Size) |
| Noise Level | ≤78 dB |
| Optional Rejector | Air Blower/Swing Arm/Pusher |
| Feeding Speed | 30 M/min |
| Functions | Dose, Form, Fill, Seal, Cut |
| Warranty | 1 Year, 12 Months |
| Paper Bag Width | 180mm-430mm |
Business Benefits
- Increased Efficiency: Handles high-volume packaging, reducing manual labor and increasing productivity
- Precision and Consistency: PLC controller ensures accurate, uniform packaging, eliminating human error
- Cost-effective Operation: Reduces labor requirements, saving time and operational costs
- Improved Packaging Quality: Provides neat, professional packaging finish that enhances product presentation
- User-friendly Operation: Intuitive interface enables easy operation by any team member
Our Automated Packaging Line is the preferred choice for food packaging plants.
Brand: Waylead
Origin: Shanghai
Applications: Suitable for muffins, biscuits, bread, and similar bakery products in food production factories and industrial bakeries
Origin: Shanghai
Applications: Suitable for muffins, biscuits, bread, and similar bakery products in food production factories and industrial bakeries
Are you tired of tedious and time-consuming packaging processes? Let Waylead's Automatic Packaging Line revolutionize your production line and save you both time and money!
Packaging and Shipping
Each component undergoes meticulous packaging with robust boxes and generous padding to prevent damage during transit. We offer multiple shipping options including standard ground shipping, expedited shipping for local orders, and air/sea freight for international deliveries.
Frequently Asked Questions
What is the brand name of this product?
Waylead
Where is this product made?
Shanghai, China
What type of packaging can this line handle?
This line handles various packaging types including boxes, bottles, and bags
What is the speed of this packaging line?
The speed can be adjusted according to specific production needs
Does this packaging line have safety features?
Yes, equipped with safety sensors and emergency stop buttons for operator protection
Product Keywords: Pastry packaging line, Bakery automatic packaging machine, Automatic baking packaging line, Muffin packaging line, Baking product packaging system
