Compressed Air 200Lmin Online Air Leak Detector Non-destructive Testing
| MOQ: | 1 |
| Price: | Negotiations |
| Standard Packaging: | wooden case |
| Delivery Period: | 40 |
| Payment Method: | L/C,T/T |
Non-destructive Testing Air Leak Detector
,Non-Destructive Air Leak Detector

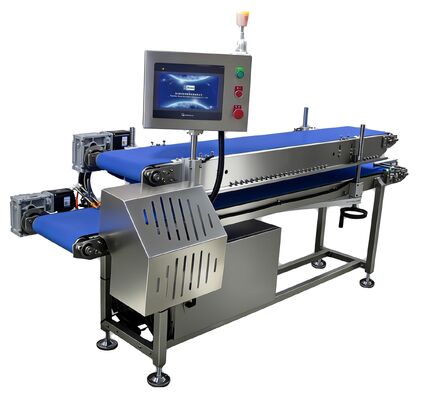

This Online Air Leak detector air leaks in packaging bags caused by factors such as poor sealing, incomplete sealing, material entrapment, perforation, or damage to packaging materials, as well as insufficient inflation. It can be connected to automated packaging lines or used for manual feeding. Defective products are automatically rejected.
Applications:
- Leak detection in vacuum-packed cooked food, coffee, and nuts;
- Sealing control of nitrogen-filled potato chip bags and dairy product bags;
- Preventing bulging, mold growth, or nutrient loss due to poor sealing.
| Product Name | Online AirLeakdetector |
| Bag Size: | Length 20-300mm, Width10-280mm, Thickness10-200mm |
| DetectionSpeed: | 40-150 bags/min |
| Applicable Products | Inflated/semi-inflatable bagged products |
| Power | 1.5kw |
| PowerSupply | Single-phase 220V 50Hz |
| CompressedAir | 200L/min (forrejecting defective products) |
| weight: | about 190kg |
-
It employs a direct pressure testing method using a pre-extrusion process to test packaging bags, effectively solving various sealing problems.
-
It is equipped with dual sensors for multi-dimensional data acquisition and incorporates a high-performance algorithm to ensure high-precision output.
-
It features a self-learning function, eliminating the need for complex parameter settings. Simply place the product according to the on-screen prompts, and the machine will automatically configure the parameters.
-
Both upper and lower conveyor belts are driven by liquid storage tanks, facilitating speed adjustment and ensuring synchronized operation.
-
It features a user-friendly human-machine interface for easy operation.
Origin: Shanghai
Applications: Suitable for muffins, biscuits, bread, and similar bakery products in food production factories and industrial bakeries
