Online Air Tightness Detector To Address Various False Sealing Issues
| MOQ: | 1 |
| Price: | Negotiations |
| Standard Packaging: | wooden case |
| Delivery Period: | 40 |
| Payment Method: | L/C,T/T |

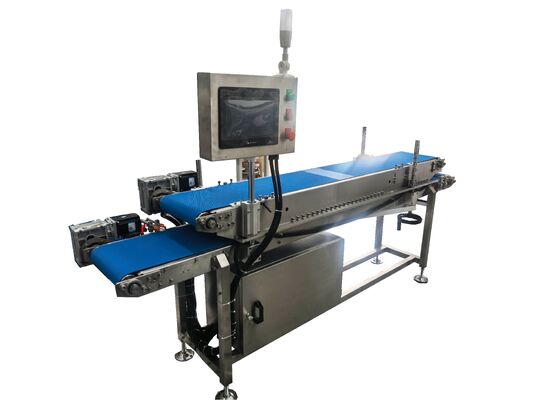

Online Air Tightness Detector
,False Sealing Air Tightness Detector
The Online Air Leak Detector is a precision-engineered quality control instrument designed to identify and eliminate packaging defects that compromise product integrity. It systematically detects leaks caused by common sealing failures, including incomplete seals, macro and micro-perforations, material entrapment, structural damage to packaging films, and insufficient gas flushing or inflation levels. Beyond basic detection, this advanced system is built for seamless integration into modern production environments. It offers dual-mode operational flexibility: direct synchronization with high-speed automated packaging lines for inline, non-stop inspection, or configuration as a benchtop unit for manual feeding and batch validation. Upon detection of a non-compliant package, the unit’s servo-driven automatic rejection mechanism instantly isolates the defect from the production flow, ensuring that only hermetically sealed products proceed to downstream packaging or shipping. By providing real-time data on rejection rates and leak types, the detector empowers quality assurance managers to identify upstream production issues, optimize sealing parameters, and maintain rigorous documentation for regulatory compliance and supply chain transparency.
Applications:
- Leak detection in vacuum-packed cooked food, coffee, and nuts;
- Sealing control of nitrogen-filled potato chip bags and dairy product bags;
- Preventing bulging, mold growth, or nutrient loss due to poor sealing.
| Product Name | Online AirLeakdetector |
| Bag Size: | Length 20-300mm, Width10-280mm, Thickness10-200mm |
| DetectionSpeed: | 40-150 bags/min |
| Applicable Products | Inflated/semi-inflatable bagged products |
| Power | 1.5kw |
| PowerSupply | Single-phase 220V 50Hz |
| CompressedAir | 200L/min (forrejecting defective products) |
| weight: | about 190kg |
-
It employs a direct pressure testing method using a pre-extrusion process to test packaging bags, effectively solving various sealing problems.
-
It is equipped with dual sensors for multi-dimensional data acquisition and incorporates a high-performance algorithm to ensure high-precision output.
-
It features a self-learning function, eliminating the need for complex parameter settings. Simply place the product according to the on-screen prompts, and the machine will automatically configure the parameters.
-
Both upper and lower conveyor belts are driven by liquid storage tanks, facilitating speed adjustment and ensuring synchronized operation.
-
It features a user-friendly human-machine interface for easy operation.
Origin: Shanghai
Applications: Suitable for muffins, biscuits, bread, and similar bakery products in food production factories and industrial bakeries
