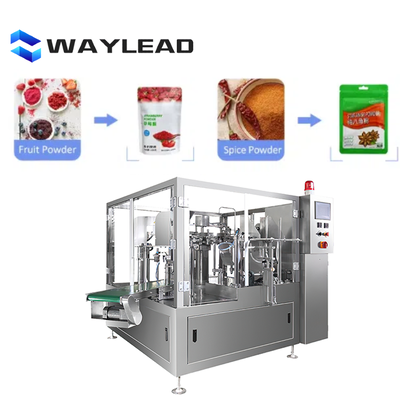

Integrated Full Auto Doypack Packaging System End-to-End
| MOQ: | 1 |
| Price: | Negotiations |
| Standard Packaging: | International standard packaging for shipping |
| Delivery Period: | 30 days |
| Payment Method: | L/C,T/T,Western Union |
| Supply Capacity: | 300 sets per year |
Full auto doypack packaging system
,Premade pouch packing machine
,End-to-end packaging system
This integrated full auto doypack packaging system is a complete end-to-end packaging solution for large and medium B2B processing factories that want to build a near-unmanned packaging workshop. It connects automatic material feeding, high precision weighing, pouch packaging, date coding, finished product conveying and automatic case packing into one closed continuous workflow.
The central PLC control system can monitor every station’s real-time operation status, automatically record full production data including daily total output, filling error rate, equipment running hours and fault log. Factory managers can check all packaging production data remotely, which greatly improves production management transparency and efficiency.
The whole line can achieve stable 60-150 bags per minute high speed output, and reduces packaging workshop labor demand by over 70%. It also supports direct connection with upstream processing production line, eliminating repeated manual material transportation and intermediate storage links, reducing secondary food contamination risk.
We provide full workshop layout design, systematic operator training and 12-month full warranty. This integrated full auto packaging system has been running stably in many large food processing factories across Southeast Asia, Africa and Latin America, helping clients achieve standardized large-scale low-labor packaging production.
| Model | WG-210 | WG-250 | WG-300 |
|---|---|---|---|
| Bag Size | Length: 120-380mm Width: 90-210mm |
Length: ≤400mm Width: 130-260mm |
Length: ≤400mm Width: 160-300mm |
| Packing Speed | ≤70 bags/min | ≤70 bags/min | ≤65 bags/min |
| Work Stations | 8 | 8 | 8 |
| Packaging Formats | Flat bags, stand-up pouches, zipper bags, composite film pouches | Flat bags, stand-up pouches, zipper bags, composite film pouches | Flat bags, stand-up pouches, zipper bags, composite film pouches |
| Power Supply | 380V | 380V | 380V |
| Total Power | 8Kw | 8Kw | 8Kw |
| Air Consumption | 5-7kg/cm²; 0.4m³/min | 5-7kg/cm²; 0.4m³/min | 5-7kg/cm²; 0.4m³/min |
| Film Material | Single PE, PE composite film, paper film, various composite films | Single PE, PE composite film, paper film, various composite films | Single PE, PE composite film, paper film, various composite films |
| Machine Weight | 500kg | 580kg | 850kg |
| Machine Dimensions | 1700*1140*1470 mm | 1850*1250*1520 mm | 2100*1500*1520 mm |
- Designed in accordance with GMP standards and CE certified
- Full servo control system for reliable, fast, and precise operation
- Empty bag tracking and monitoring device prevents sealing without bag opening, saving packaging materials
- Eight-station structure with centralized control via programmable PLC and six flat touch screens for simple operation
